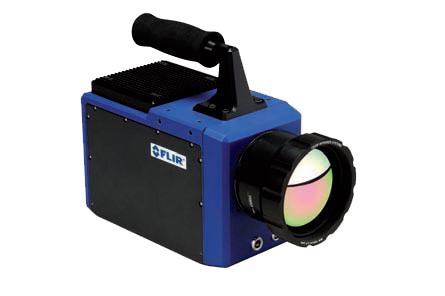

FLIR SC 7000 Thailand Infrared Camera Specifications

State-of-the-art Technology Systems for R&D and Thermography Applications


FLIR SC7000-Series Features

A unique combination of technologies for Infrared R&D applications

The SC7000 Series is specifically designed for academic and industrial R&D applications as well as integrators who need to have a very flexible camera, with the highest sensitivity, accuracy, spatial resolution and speed at an affordable cost. The SC7000 Series are integrated systems, which complement SC5000 Series dedicated for industrial quantitative thermography and stress analysis.


Accurate Temperature Measurement with FLIR Hypercal™

Its compact size allows implementation of the SC7000 Series into small spaces, and its removable lens interface gives complete flexibility in the optical path. The SC7000 Series is available with a wide range of detectors to address any application in single and multispectral analysis. Each of them has a programmable frame rate and integration time.


Temperature Range Extension

External triggering allows synchronization of the image capture to the most fleeting events with 3 external analogue signals. The SC7000 Series can be easily connected to a laptop computer through its truly plug and play and state of the art Camlink or GigE interfaces.


Features

Sensor type InSb or MCT or QWIP
Waveband 3 - 5 μm or 8 - 12 μm (optional 1.5 - 5 μm)
Pixel resolution 320 x 256 or 640 x 512 available / 14 bits
Pitch 30 μm / 25 μm / 20 μm / 16 μm / 15 μm
NETD < 20 mK
Cooler Integrated stirling cooler
Max Full Frame rate Up to 380 Hz
Integration time 200ns to 20 ms variable by 100ns step
Optical interface M80 Thread Removable for custom optical design
Field of view From 42° x 34° (12 mm) to 5.5° x 4.4°
(100 mm) - Up to X5 microscope lens
Filter wheel Wheel 4 slots motorized removable
Digital output CAMLINK / GigE
Trigger input / output Smart trigger capabilities
Temperature calibration range Available from -20 °C to up to 3000 °C
Temperature measurement accuracy ±1 °C or ±1 %
Extended dynamic range Multi IT™ / Temperature Range Extension (TRE)

Physical Specifications

Size (w/o lens) (LxWxH) 253x130x168 mm
Weight (w/o lens) 4.950 Kgs
Operational temperature -20 °C / +55 °C
Shock Operational 25G, IEC 68-2-29
Vibration Operational 2G, IEC 68-2-26
Input voltage 12 VDC / Battery
Power consumption (cooldown/stab) < 30 W

Optional Lenses - Bayonet Mount

W/o additional lens 44° x 36°
12 mm 22° x 17°
54 mm 11° x 8.8°
100 mm 5.5° x 4.4°
200 mm F2 2.75° x 2.2°
Microscope lens X1 9.6 x 7.2 mm
Microscope lens X3 3.2 x 2.4 mm


Flir Infrared Thailand

State-of-the-art Technology Systems for R&D and Thermography Applications


Flir Infrared Thailand

Signature and Range phenomenolgy applications gets benefit from the extraordinary versatility of the SC7000.

Flir Infrared Thailand

SC7000 systems offer a solution for every R&D measurement situation.


Flir Infrared Thailand

Brake disk analysis being conducted with a SC7000 reveals never seen before details thanks to fast and ultra sensitive detectors and electronics.
