FLIR HRC-25x320 MCT / HRC-36x460 MCT Infrared Camera Specifications

Thermal imaging camera only


IMAGING PERFORMANCE
Detector type Mercury Cadmium Telluride (MCT) 640 x 512 pixels or 320 x 256 pixels
Spectral range 3.7 to 4.8 μm
Field of View (FOV) / Spatial resolution (IFOV)

HRC-25x320 MCT

25 mm lens

80 mm lens

320 mm lens
FOV 21.7° (H) x 17.5° (V) 6.9° (H) x 5.5° (V) 1.7° (H) x 1.4° (V)
IFOV for 320 x 256
pixels version		 1.2 mrad 0.38 mrad 0.09 mrad
IFOV for 640 x 512
pixels version		 0.6 mrad 0.19 mrad 0.05 mrad

HRC-36x460 MCT

36 mm lens

116 mm lens

460 mm lens
FOV 15.3° (H) x 12.5° (V) 4.7° (H) x 3.8° (V) 1.2° (H) x 0.95° (V)
IFOV for 320 x 256
pixels version		 0.8 mrad 0.25 mrad 0.06 mrad
IFOV for 640 x 512
pixels version		 0.4 mrad 0.13 mrad 0.03 mrad
Thermal sensitivity <25 mK (18 mK typical)
Image frequency 50 Hz (PAL), 60 Hz (NTSC)
Focus Automatic or manual
Electronic zoom 2x
Image processing Histogram Equalizition, Edge Enhancement Filter

SYSTEM FEATURES
Remote Control By serial link or over TCP/IP
Automatic heater Yes
Built-in Test (BIT) Yes

IMAGE PRESENTATION
Video output NTSC or PAL composite video
14-bit non compressed digital image: optional
Connector types BNC (x2)

POWER
Requirements BNC (x2)
Consumption 70W max, 35W Type

ENVIRONMENTAL SPECIFICATIONS
Operating temperature range -32°C to +55°C
Storage temperature range -40°C to +70°C
Automatic Window defrost Yes
Humidity MIL STD 810F Method 507.4
IP rate IP66
Rain MIL STD 810F Method 506.4 Proc. II
Shock MIL STD 810F Method 516.5 Proc.I
Vibration MIL STD 810F Method 514.5

PHYSICAL CHARACTERISTICS

HRC-25x320 MCT


Camera Weight 9.3 kg
Camera Size 381.5 x 196 x 162 mm; 450 x 226 x 175 mm with solar cap
Shipping weight (camera + packaging) w/o accessories 381.5 x 196 x 162 mm; 450 x 226 x 175 mm with solar cap
Shipping size 650 x 510 x242mm
Shipping weight (camera + packaging) with Solar 30 kg
cover, cables, breakout box, remote control Shipping size 30 kg

INTERFACES
TCP/IP Optional: command and control all functions
RS-232/422 Command and control all functions

Standard Package

 HRC-25x320 MCT / HRC-36x460 MCT: Thermal imaging camera, power supply and
main power cable, breakout cable (1m) to power/analogue video/serial control,
operator manual, shipping case (x1) Optional: Solar cover, breakout box and 5m
main cable from camera, remote control, GigE ouput


Flir Infrared Camera Thailand

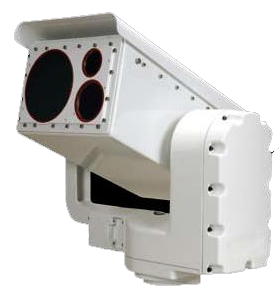

The HRC-25x320 MCT MS and HRC-36x460 MCT MS are Multi-Sensor systems that integrate the long range, mid-wave thermal imaging cameras found in the HRC-25x320 MCT and HRC-36x460 MCT with a variety of powerful daylight sensors . Optionally a laser range finder and a video tracker can be installed. An array of advanced functions and options are available to meet the most demanding needs.


The thermal imaging camera integrated in the Multi-Sensor systems comes either with a 640 x 512 or 320 x 256 pixels MCT detector. The Multi-Sensor systems come with a robust Pan & Tilt system to increase situational awareness.
