FLIR M-Series Thailand Infrared Camera Specifications
Premium Maritime Thermal Night Vision System
Thermal Imaging Specifications |
|||
M-626L |
M-320L |
M-324 |
|
Sensor Type | 640 x 480 VOx microbolometer | 320 x 240 VOx microbolometer | 320 x 240 VOx microbolometer |
FOV | 26° x 20° (NTSC) | 20° x 15° (NTSC) | 24° x 18° (NTSC) |
Focal Length | 35 mm | 35 mm | 19 mm |
E-Zoom | 2x & 4x | 2x | 2x |
Image Processing | FLIR DDE | FLIR DDE | FLIR DDE |
Lowlight Imaging Specifications |
|||
Detector Type | 1/2" interline transfer CCD | 1/2" interline transfer CCD | N/A |
Lines of Resolution | 768 (H) x 494 (V) | 768 (H) x 494 (V) | |
Minimum Illumination | 100 micro-lux (@ f/1.4) | 100 micro-lux (@ f/1.4) | |
System Specifications |
|||
Size | 7" dia. w 11.2" ht. | ||
Weight | ~ 9lb | ||
Pan/Tilt Coverage | 360° continuous pan +/-90° tilt | ||
Video Output | NTSC or PAL | ||
Connector Types | BNC with BNC-to-RCA adapter included for video out | ||
Power Requirements | 12 VDC to 24 VDC (-10%/+30%) | ||
Power Consumption | 25W nominal; 50W max | ||
Environmental |
|||
Operating temperature range | -25°C to +55°C | ||
Storage temperature range | -40ºC to +85ºC | ||
Automatic Window defrost | Standard | ||
Sand/dust | Mil-Std-810E | ||
Window de-icing | Standard | ||
Water Ingress | IPX6 | ||
Shock | 15 g vertical, 9 g horizontal | ||
Vibration | IEC 60945; MIL-STD-810E | ||
Lightening Protection | Standard | ||
Salt Mist | IEC60945 | ||
Wind | 100 knot (115.2 mph) | ||
EMI | IEC 60945 | ||
Standard Package |
Camera head with 18-inch pigtails for power, analog video, and Ethernet Joystick Control Unit Operator manual |
||
Accessories |
Dual Station JCU Low Smoke, Zero Halogen Ethernet Cables Standard cat 5e Ethernet cables Top down mounting riser |
F-Series thermal security cameras let you see intruders and other threats to your facility clearly in total darkness and in bad weather. Fully enabled for control and operation over digital and analog networks, F-Series thermal imaging cameras are available in 160 × 120, 320 × 240, and high-resolution 640 × 480 formats, providing up to sixteen times the image clarity and longer threat detection range performance than lower resolution cameras.

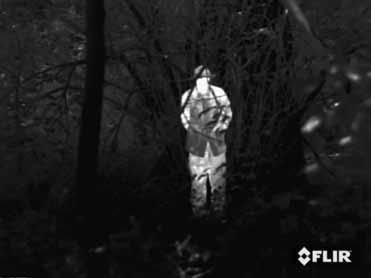

Camouflaged intruders are invisible to daylight CCD cameras, but people can't hide their heat from FLIR thermal Imagers
