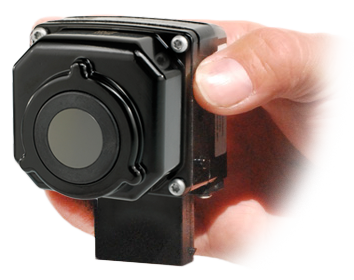

FLIR PathFindIR Thailand Infrared Camera Specifications

IMAGING PERFORMANCE
Detector type	Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels
Spectral range	8 to 14µm
Field of view	36° (H) x 27° (V) with 19 mm lens
Spatial resolution (IFOV)	2 mrad
Thermal sensitivity	100 mK at +25°C
Image frequency	8.3 Hz PAL or 7.5 Hz NTSC
Focus	Automatic (25 m to infinity)
Image processing	Digital Detail Enhancement (DDE)
SYSTEM FEATURES
Time to image	< 2 seconds
Automatic Heater	When window temperature is below +4°C
IMAGE PRESENTATION
Video output	RS170 EIA/NTSC or CCIR/PAL composite video, 75Ω
Connector types	BNC, with optional pigtail cable
POWER
Requirements	6 - 16 V DC
Consumption	2 W quiescent, 6 W max (with window heater on)
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range	-40°C to +80°C
Storage temperature range	-57°C to +105°C (Extended storage time above +40°C is not recommended due to reduction in service life)
Humidity	6,500 hours at 81%rh at +25°C and salt spray per IEC 60068-2-11Ka
Sand/dust	Mil-Std810
Icing	Heater will defrost 2 mm of ice within 15 minutes at -30°C and wind speed of 100 km/h
Encapsulation	Hermetically sealed enclosure
Shock	5 30g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea
Vibration	IEC 60068-2-64
PHYSICAL CHARACTERISTICS
Camera Weight	360 grams
Camera Size	57.4 mm x 56.1 mm x 71.4 mm excluding connector which protrudes an additional 28.7 mm

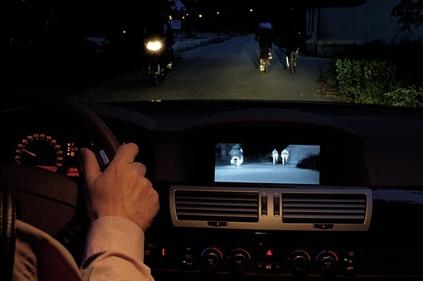

The PathFindIR thermal imager can give you more time to react to road hazards than conventional headlights. It uses the same technology FLIR offers to military agencies to see at night. It features a 36° field-of-view lens, which provides excellent roadside awareness, even at long range. This gives you a better chance of seeing animals and pedestrians approaching the roadway before they become a danger.
