LIGHTWEIGHT DESIGN, HEAVYWEIGHT PERFORMERS

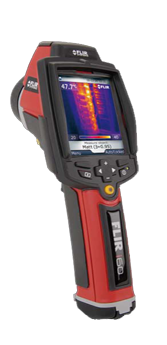

The FLIR i60 infrared cameras are IP54-rated, making them suitable for use in harsh industrial environments. The cameras are ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.

Discover how a FLIR i60 infrared camera can help you:

• Create more compelling reports with scalable Picture in Picture Fusion images.

• Quickly scan electrical components, pumps, motors, and even building infrastructure.

• Find potential equipment malfunctions to save money and enhance efficiency.

Imaging and optical data
Field of view (FOV) / Minimum focus distance	25° × 25° / 0.10 m (0.33 ft.)
Spatial resolution (IFOV)	2.42 mrad
Thermal sensitivity/NETD	<0.10 ºC (<0.18 ºF) @ +25 ºC (+77 ºF) / 100 mK
Image frequency	9 Hz
Focus	Manual
Focal Plane Array (FPA) / Spectral range	Uncooled microbolometer / 7.5–13 μm
IR resolution	180 × 180 pixels
Image presentation
Display	Built-in 3.5 in. LCD, 256k colors, 240 × 320 pixels
Image modes	IR image, visual image, Picture in Picture, thumbnail gallery
Picture in Picture	Scalable IR area on visual image
Measurement
Object temperature range	–20 to +120 ºC (–4 to +248 °F) 0 to +350 ºC (+32 to +662 °F)
Accuracy	±2 °C (±3.6 °F) or ±2% of reading
Measurement analysis
Spotmeter	Center spot
Area	1 box with min./max.
Automatic hot/cold detection	Auto hot or cold spotmeter markers within area
Emissivity correction	Variable from 0.1 to 1.0 or selected from list of materials
Reflected apparent temperature correction	Automatic, based on input of reflected temperature
IR window Auto-Correction	Automatic, based on inputs of optics/ window transmission and temperature
Set-up
Menu commands	Palettes (Black and White, Iron and Rainbow), image adjustment (auto/ manual)
Set-up commands	Local adaptation of units, language, date and time formats; automatic shutdown, display intensity
Storage of images
Storage of images	Standard JPEG, including measurement data, on memory card
Image annotations
Voice	60 seconds
External sensors	Possible to connect (Bluetooth®): Extech Moisture Meter MO297 Extech Clamp Meter EX845
Radiometric IR-video streaming	Full dynamic to PC using USB (approximately 1 Hz)
Digital camera
Built-in digital camera	2.3 Mpixels (1536 × 1536 pixels), and two LED lights
Digital camera, focus	Minimum focus distance 0.4 m (1.3 ft.)
Laser pointer
Laser	Semiconductor AlGaInP diode laser, Class 2
Laser alignment	Position is automatic displayed on the IR image
Data communication interfaces
Interfaces	USB-A: Connect external USB device (copy to memory stick)
	USB Mini-B: Data transfer to and from PC / streaming MPEG-4
Power system
Battery	Li Ion (field replaceable), 5 hours operating time
Charging system	In camera, AC adapter, 2-bay charger or 12 V from a vehicle
Power management	Automatic shutdown (user selectable)
AC operation	AC adapter, 90–260 VAC, 50/60 Hz, 12 V output to camera
Environmental data
Operating temperature range	–15 to +50 °C (+5 to +122 °F)
Storage temperature range	–40 to +70 °C (–40 to +158 °F)
Humidity (operating and storage)	IEC 68-2-30/24 h 95% relative humidity +25 °C to +40 °C (+77 °F to +104 °F)
Encapsulation	IP 54 (IEC 60529)
Bump	25 g (IEC 60068-2-29)
Vibration	2 g (IEC 60068-2-6)
Physical data
Camera weight, incl. battery	0.60 kg (1.32 lb)
Camera size (L × W × H)	235 × 81 × 175 mm (9.3 × 3.2 × 6.9 in.)
