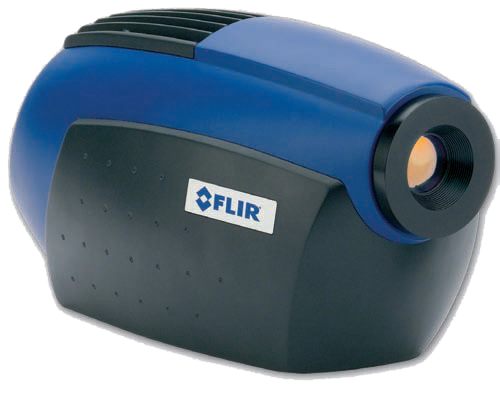

FLIR SC 5000 Thailand Infrared Camera Specifications

High Performance Cameras For Industrial, Educational & Thermography Applications


Features
Sensor type InSb
Waveband 2.5 - 5.1 μm
Pixel resolution 320 x 256 or 640 x 512 available / 14 bits
Pitch 30 μm / 15 μm
NETD < 20 mK
Cooler Integrated stirling cooler
Max Full Frame rate Up to 380 Hz
Integration time 1 μs to 20 ms variable by 1 μs step
Optical interface Built-in 27mm lens with bayonet mount
Field of view From 42° x 34° (12 mm) to 5.5° x 4.4°
(100 mm) - Up to X5 microscope lens
Filter wheel Wheel 4 slots motorized removable
Digital output CAMLINK / GigE
Trigger input / output Smart trigger capabilities
Temperature calibration range Available from -20 °C to up to 3000 °C
Temperature measurement accuracy ±1 °C or ±1 %
Extended dynamic range Multi IT™ / Temperature Range
Extension (TRE)

Physical Specifications
Size (w/o lens) (LxWxH) 320x141x159 mm
Weight (w/o lens) 3.8 Kgs
Operational temperature -20 °C / +55 °C
Shock Operational 25G, IEC 68-2-29
Vibration Operational 2G, IEC 68-2-26
Input voltage 12 VDC
Power consumption (cooldown/stab) 30 W / 25 W

Optional Lenses - Bayonet Mount
W/o additional lens 20° x 16°
12 mm 42° x 34°
54 mm 10° x 8°
100 mm 5.5° x 4.4°
Microscope lens X0.5 19.2 x 14.4 mm
Microscope lens X1 9.6 x 7.2 mm
Microscope lens X3 3.2 x 2.4 mm
Microscope lens X5 1.9 x 1.4 mm


Flir Infrared Thailand

FLIR SC620 is a high performance infrared
system used for science and research
applications within the long wave spectral
range. With its 640x480 resolution it produces
sharp images with high accuracy radiometric
readings. Camera portability increases the
flexibility of use. A Firewire port is available
for real time image transfer to PC for data
capture and analysis. The camera is equipped
with the standard 24° lens.


Flir Infrared Thailand

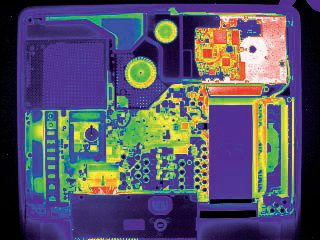

SC5000 cameras are well suited for electronic board, wafer and cells inspection thanks to their wide variety of lenses and accessories.

Flir Infrared Thailand

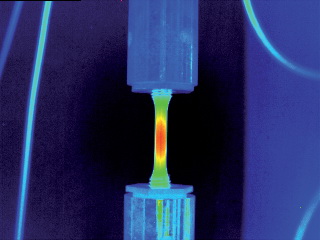

In addition with Thesa infrared Lock-in system, full field stress imaging and fatigue limit determination are done in second.
