FLIR F-Series Thailand Infrared Camera Specifications


Thermal Security Cameras with IP and Analog Functionality 640

Camera Platform Type

 Fi×ed Fi×ed Fi×ed

Thermal Camera Specs
Array Format (NTSC) 160 × 120 320 × 240 640 × 480
Detector Type Long-Life, Uncooled
VO× Microbolometer		 Long-Life, Uncooled
VO× Microbolometer		 Long-Life, Uncooled
VO× Microbolometer
Effective Resolution 19,200 76,800 307,200
Pixel Pitch 25 μm 25 μm 17 μm
Field Of View 24° × 20° (F-124; 9 mm)
17° × 14° (F-117; 13 mm)
12° × 10° (F-112; 19 mm)		 48° × 39° (F-348; 9 mm)
34° × 28° (F-334; 13 mm)
24° × 19° (F-324; 19 mm)
13 °× 10° (F-313; 35 mm)
7° × 5° (F-307; 65 mm)
4.6° × 3.7° (F-304; 100 mm)		 45° × 37° (F-645; 13 mm)
25° × 20° (F-625; 25 mm)
18° × 14° (F-618; 35 mm)
12° × 10° (F-612; 50 mm)
10° × 8° (F-610; 65 mm)
6.2° × 5° (F-606; 100 mm)
Zoom 2× E-zoom 2× & 4× E-zoom 2× & 4× E-zoom
Spectral Range 7.5 μm to 13.5 μm 7.5 μm to 13.5 μm 7.5 μm to 13.5 μm
Focus Range Athermalized, focus-free Athermalized, focus-free Athermalized, focus-free
Frame Rate NTSC: 30 Hz; PAL 25 Hz NTSC: 30 Hz; PAL 25 Hz NTSC: 30 Hz; PAL 25 Hz

Outputs
Composite Video NTSC or PAL Standard Standard Standard
Composite Video NTSC or PAL Two independent channels of streaming MPEG-4, H.264, or M-JPEG Two independent channels of
streaming MPEG-4, H.264,
or M-JPEG		 Two independent channels of
streaming MPEG-4, H.264,
or M-JPEG

Control
Point To Point (stand alone) Standard Standard Standard
Ethernet Standard Standard Standard
Serial RS-232/-422; Pelco D, Bosch RS-232/-422; Pelco D, Bosch RS-232/-422; Pelco D, Bosch
Network Enabled Standard Standard Standard

General
Weight ~10.0 lb (configuration dependent) ~10.0 lb (configuration dependent) ~10.0 lb (configuration dependent)
Dimensions (L,W,H) 18.1" × 5.5" × 6.3" 18.1" × 5.5" × 6.3" 18.1" × 5.5" × 6.3"
Power Requirements 24 VAC (20-30 VAC)
24 VDC (21-30 VDC)		 24 VAC (20-30 VAC)
24 VDC (21-30 VDC)		 24 VAC (20-30 VAC)
24 VDC (21-30 VDC)
Power Consumption 24 VAC: 15 VA (max w/o heaters);
51 VA (max w/heaters)
24 VDC: 10 W (max w/o heaters);
46 W (max w/heaters)		 24 VAC: 15 VA (max w/o heaters);
51 VA (max w/heaters)
24 VDC: 10 W (max w/o heaters);
46 W (max w/heaters)		 24 VAC: 15 VA (max w/o heaters);
51 VA (max w/heaters)
24 VDC: 10 W (max w/o heaters);
46 W (max w/heaters)





Flir Infrared Camera

F-Series thermal security cameras let you see intruders and other threats to your facility clearly in total darkness and in bad weather. Fully enabled for control and operation over digital and analog networks, F-Series thermal imaging cameras are available in 160 × 120, 320 × 240, and high-resolution 640 × 480 formats, providing up to sixteen times the image clarity and longer threat detection range performance than lower resolution cameras.

กล้องตรวจจับความร้อน flir
กล้องตรวจจับความร้อน Flir

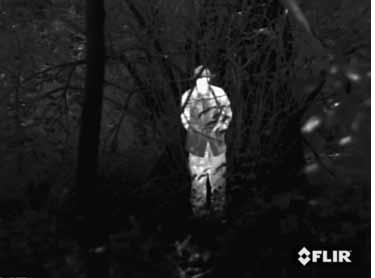

Camouflaged intruders are invisible to daylight CCD cameras, but people can't hide their heat from FLIR thermal Imagers
