FLIR D-Series Thailand Infrared Camera Specifications

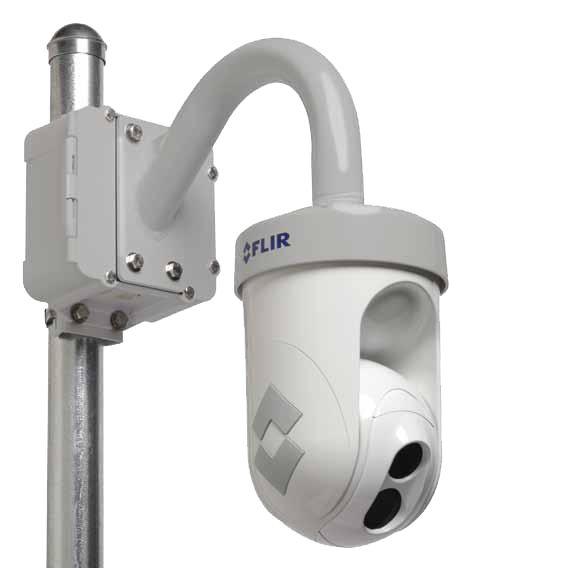

Multi -sensor thermal security camer a in networked outdoor dome enclosure

Camera Platform Type

 Outdoor PTZ Multi-Sensor Dome Outdoor PTZ Multi-Sensor Dome

Thermal Camera Specs
Array Format (NTSC) 320 × 240 640 × 480
Detector Type Long-Life, Uncooled
VO× Microbolometer		 Long-Life, Uncooled
VO× Microbolometer
Effective Resolution 76,800 76,800
Pixel Pitch 25 μm 17 μm
Field of View 48° × 39° (D-348; 9 mm)
34° × 28° (D-334; 13 mm)
24° × 19° (D-324; 19 mm)
13 °× 10° (D-313; 35 mm)		 45° × 37° (D-645; 13 mm)
25° × 20° (D-625; 25 mm)
18° × 14° (D-618; 35 mm)
Zoom 2× & 4× E-zoom 2× & 4× E-zoom
Spectral Range 7.5 μm to 13.5 μm 7.5 μm to 13.5 μm
Focus Range Athermalized, focus-free Athermalized, focus-free

Outputs
Composite Video NTSC or PAL Standard Standard
Video Over Ethernet Two independent channels of
streaming MPEG-4, H.264, or MJPEG
for each of two cameras		 Two independent channels of
streaming MPEG-4, H.264, or MJPEG
for each of two cameras

Control
Point To Point (stand alone) Standard Standard
Ethernet Standard Standard
Serial RS-232/-422; Pelco D, Bosch RS-232/-422; Pelco D, Bosch
Network Enabled Standard Standard

Pan/Tilt Performance
Pan Angle/Speed Continuous 360°; 0.5° to 60°/sec Continuous 360°; 0.5° to 60°/sec
Tilt Angle/Speed Programmable Presets +45° to -180°; 0.5° to 60°/sec +45° to -180°; 0.5° to 60°/sec

General
Weight ~23 lb ~23 lb (configuration dependent)
Dimensions (L,W,H) 18.54" × 7.82" × 21.88" (overall)
(471 mm × 199 mm × 556 mm)
7" (dia.) × 11.2" (ht.) (imager only)
(178 mm × 285 mm)
(plus mounting hardware)		 18.54" × 7.82" × 21.88" (overall)
(471 mm × 199 mm × 556 mm)
7" (dia.) × 11.2" (ht.) (imager only)
(178 mm × 285 mm)
(plus mounting hardware)
Power Requirements 24 VDC (21 to 30 VDC) or
24 VAC (20 to 30 VAC)		 24 VDC (21 to 30 VDC) or
24 VAC (20 to 30 VAC)
Power Consumption 24 VAC: 40 VA nominal,
85 VA max w/heater
24 VDC: 30 W nominal,
75 W max w/heater		 24 VAC: 40 VA nominal,
85 VA max w/heater
24 VDC: 30 W nominal,
75 W max w/heater

Day/Night CCD Camera

Sony FCB-EX1010

Sony FCB-EX1010
Sensor Type 1/4" Exview HAD CCD 1/4" Exview HAD CCD
Lens Field Of View 57.8° (h) to 1.7° (h) 57.8° (h) to 1.7° (h)
•Focal Length 3.4 mm to 122.4 mm 3.4 mm to 122.4 mm
•Zoom 36× Optical zoom, 12× E-zoom 36× Optical zoom, 12× E-zoom
•F/# 1.6 to 4.5 1.6 to 4.5
Effective pixels (NTSC) 380,000 380,000














กล้องถ่ายภาพความร้อน

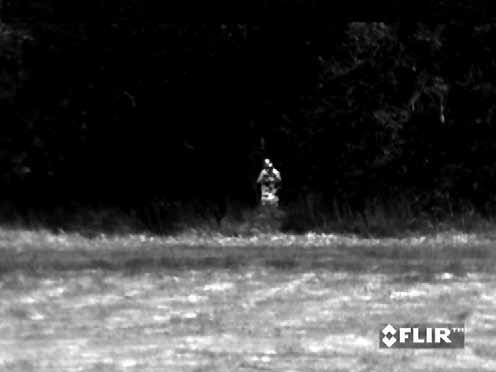

D-Series thermal security cameras let you see intruders and other threats to your facility's security clearly in total darkness and in bad weather. The D-Series outdoor dome enclosure provides precision pan/tilt control while providing fully programmable scan patterns,radar slew-to-cue, and slew-to-alarm functionality. Fully enabled for control and operation over IP and serial networks, D-Series systems let you deploy a thermal imager with either 640 × 480 or 320 × 240 resolution, and a day/night 36× zoom color CCD camera.


FLIR's D-Series thermal multi-sensor security dome cameras are the perfect replacement for legacy dome cameras, providing clear 24/7 imaging capability in an attractive, discrete dome-style enclosure.

Flir Infrared Camera
Flir Infrared Camera

Thermal cameras can complement CCD cameras during the day in situations where contrast is low.
